The Story
ATR294M features a high-resolution sensor with a 4128x2880 pixel array, utilizing 4.63 Ī¼m pixels and a 4/3inch optical formatand and built-in 14-bit ADC, 15ke full well,supports binning mode. Additionally,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1ā, while the dew prevention heater (window heating) further enhances performance.

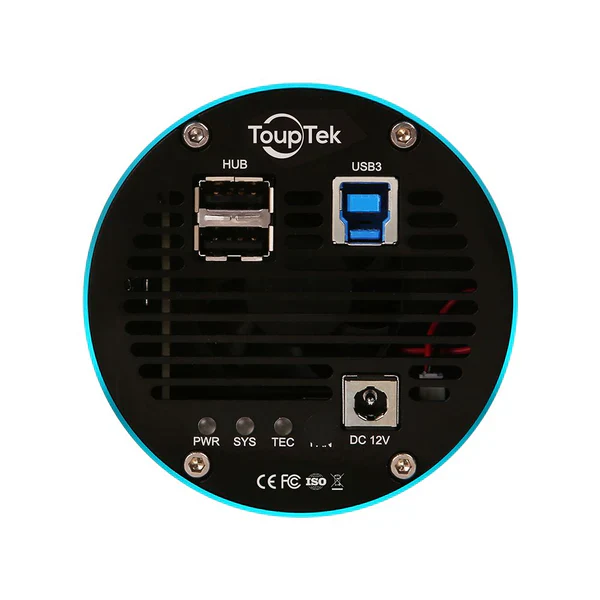

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Infor

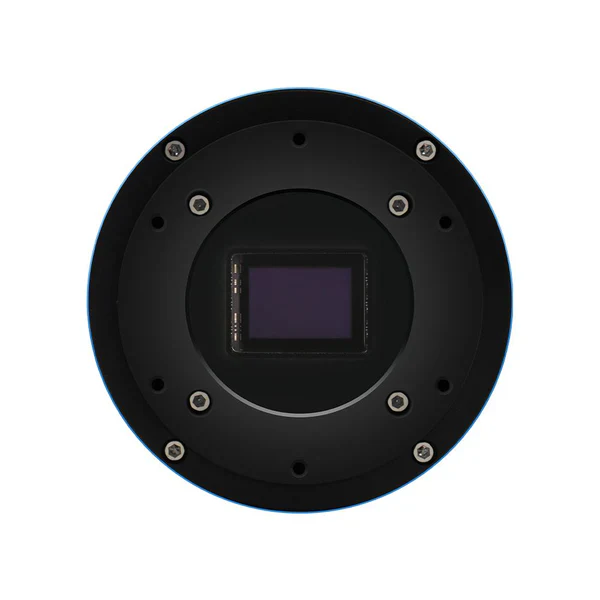

ATR294M features Sony IMX294 4/3-inch Optical Format sensor
Image Area: 19.1mmx13mm,
Diagonal: 23.1mm
Pixel Size: 4.63Ī¼m x 4.63Ī¼m
DDR3
ATR294M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
Two stage TEC cooling system
ATR294M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR294M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5Ā°C to -10Ā°C.
Anti-dew technology
ATR294M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.
This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Camera parametersļ¼Full resolutionćRAW 14-bit modećTemperature: -10Ā°CćHCGļ¼
Camera parametersļ¼Full resolutionćRAW 14-bit modećTemperature: -10Ā°CćLCGļ¼

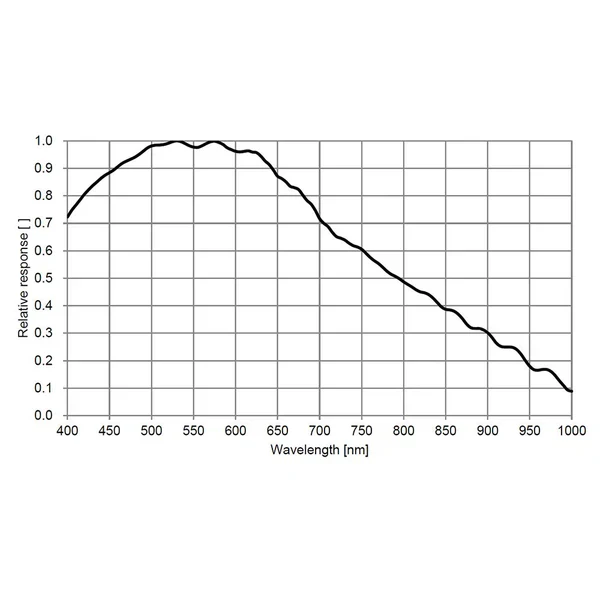

Spectral Response
Mechanical Diagram
Connection with Accessories
Packaging List
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
